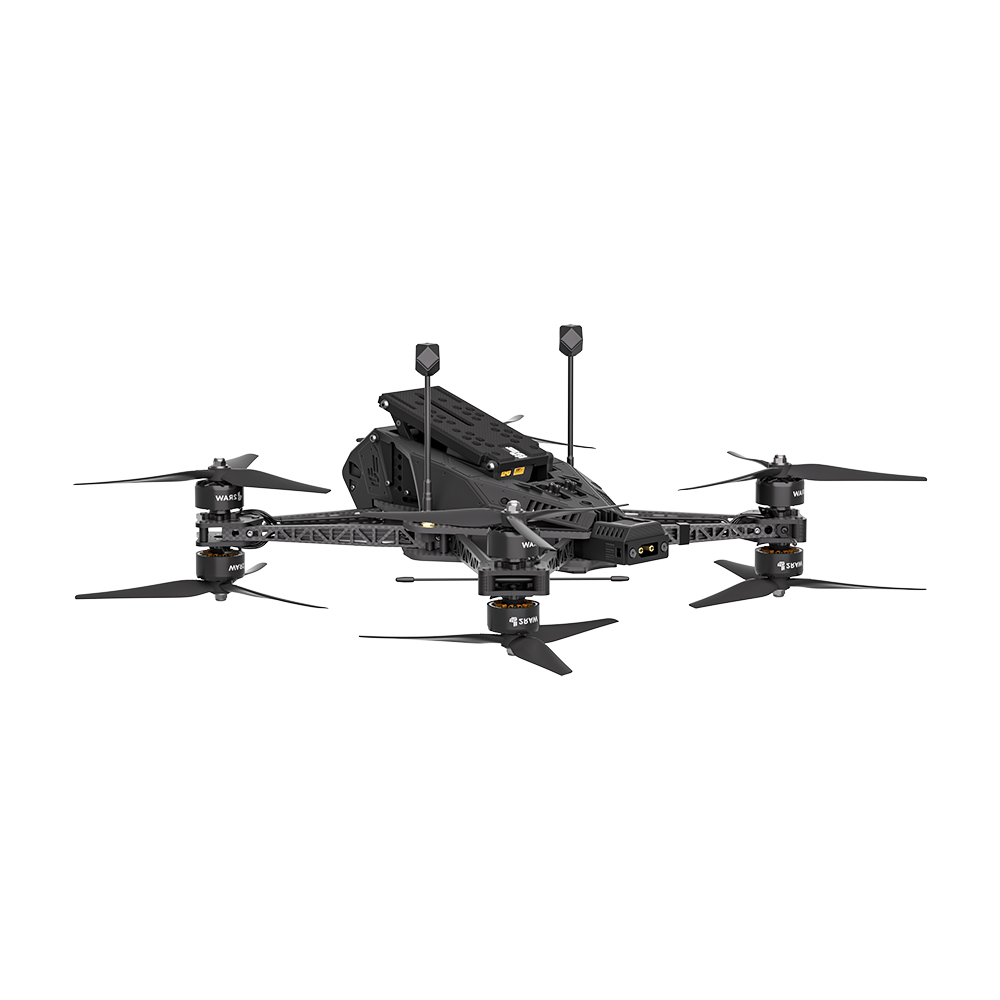

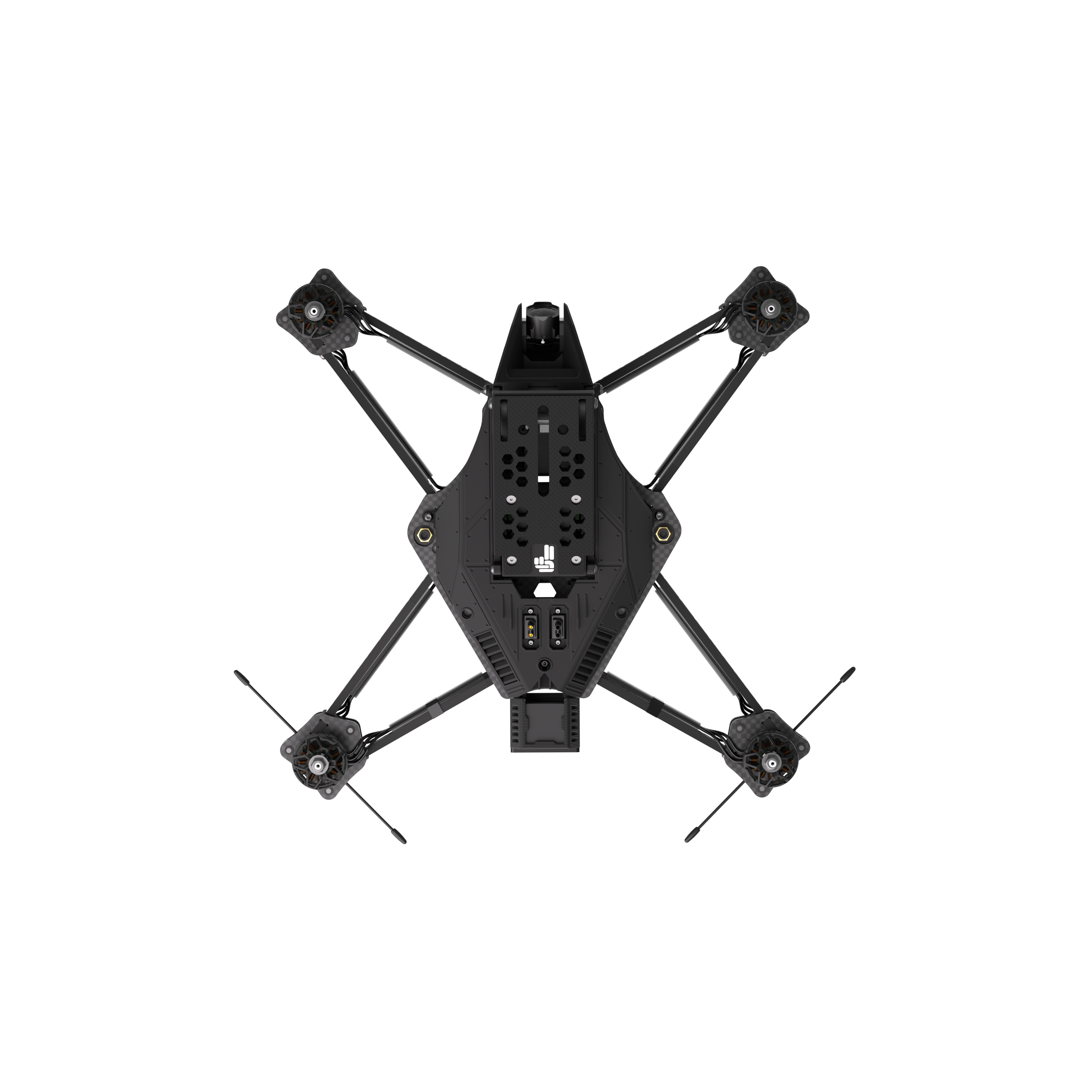

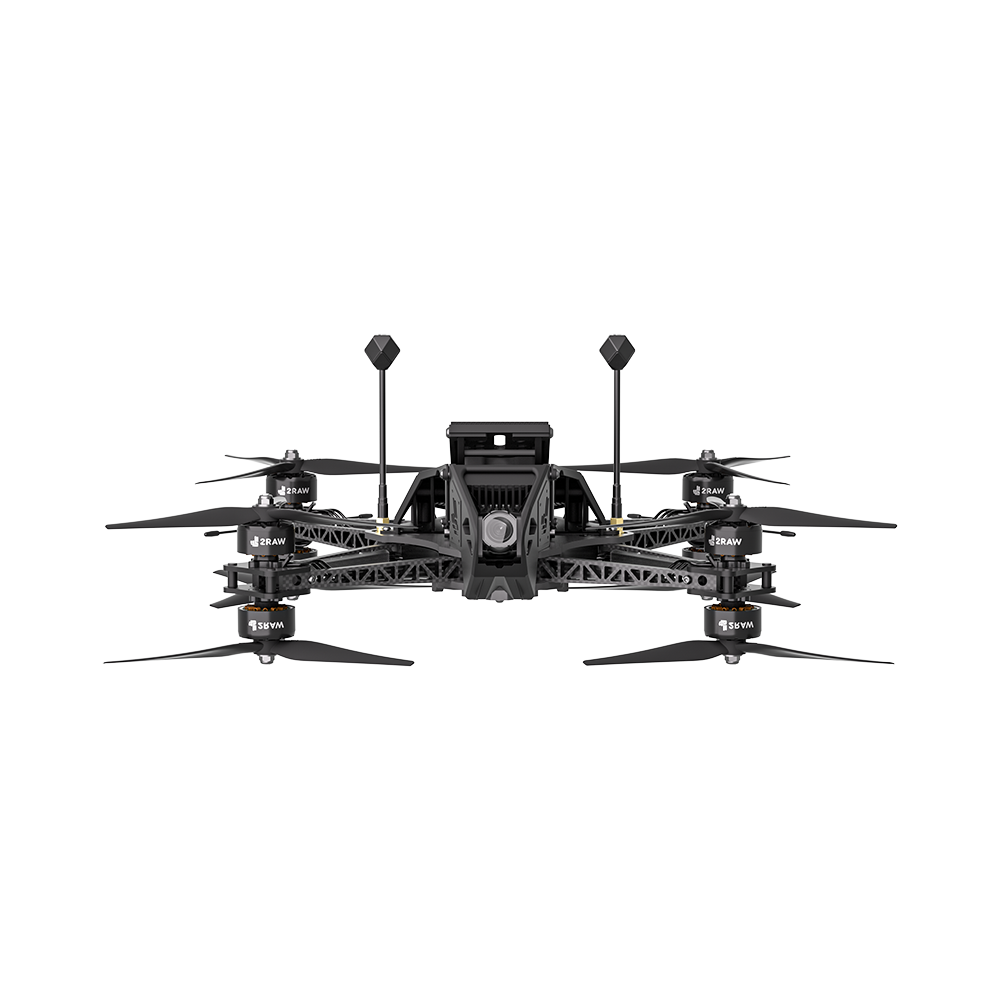

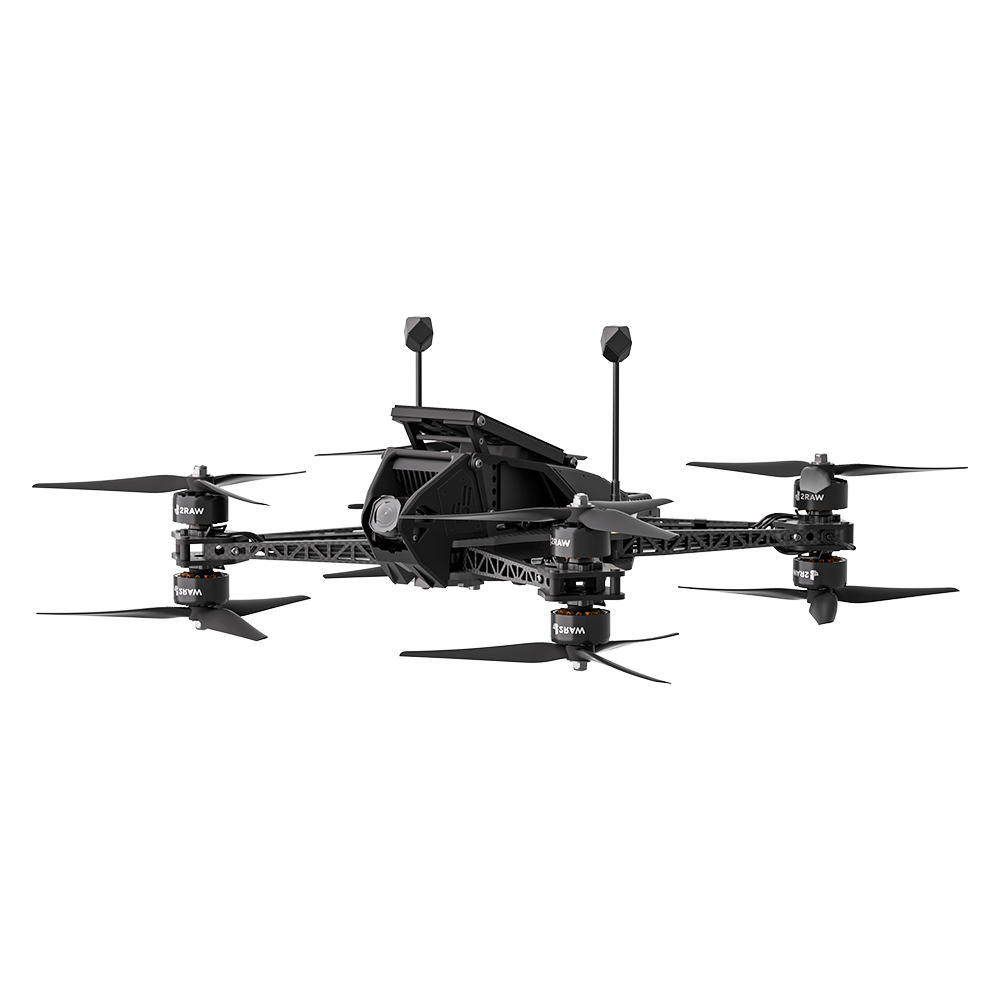

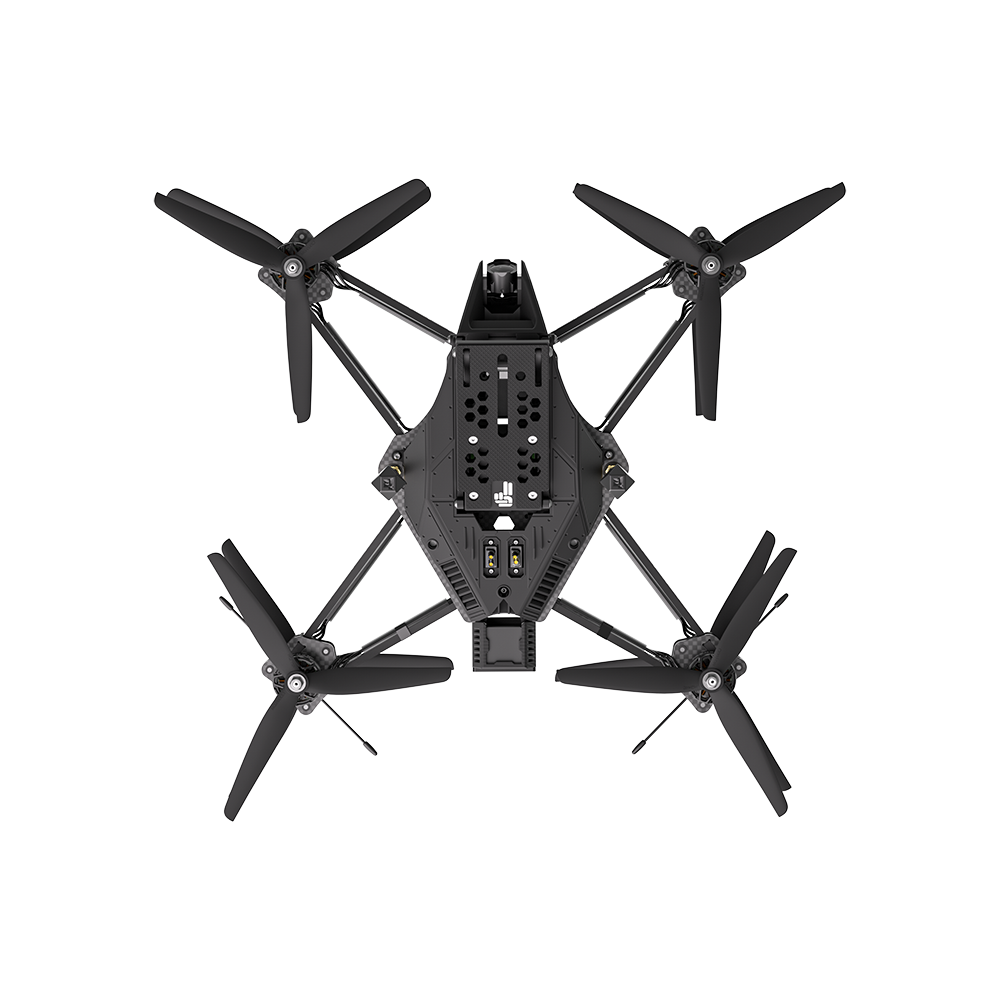

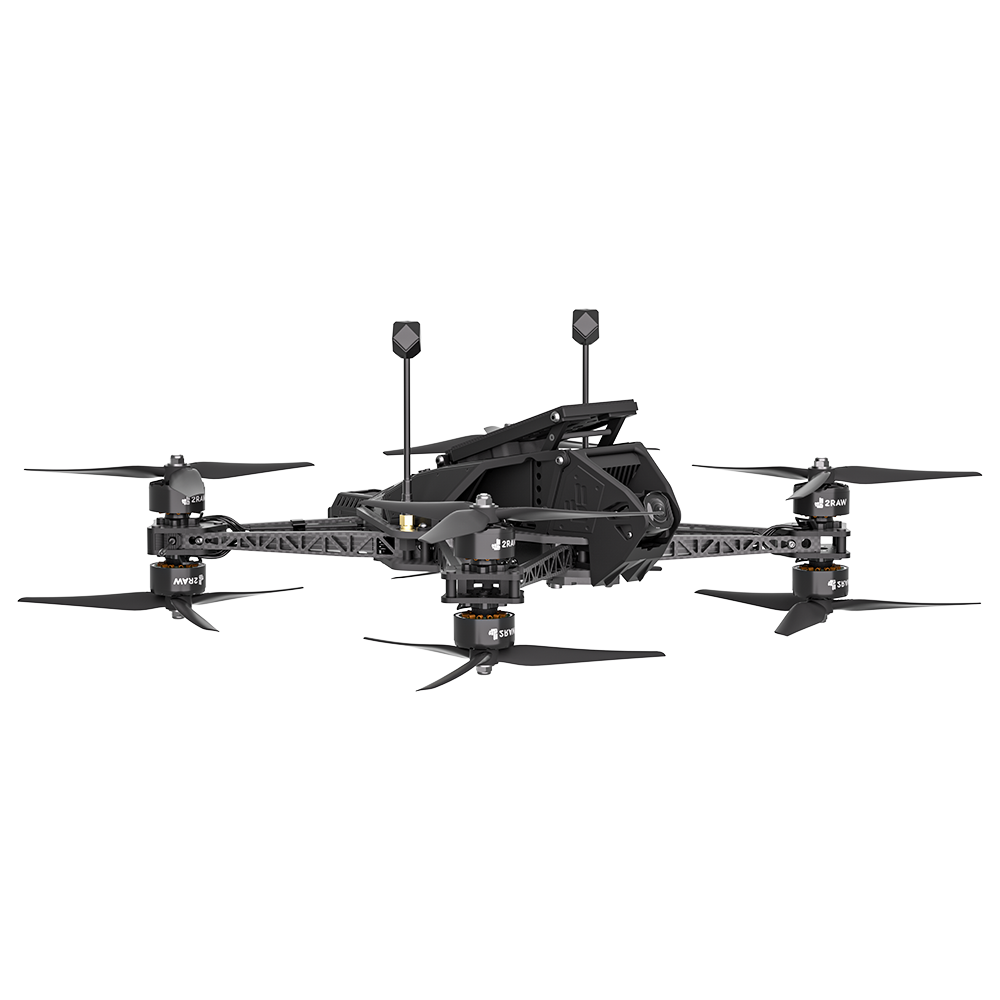

Centurion X8 O4 6S HD

Advanced Truss Arms

The integration of an A-frame design with trusses ensures exceptional stiffness while effectively managing weight, resulting in outstanding performance.

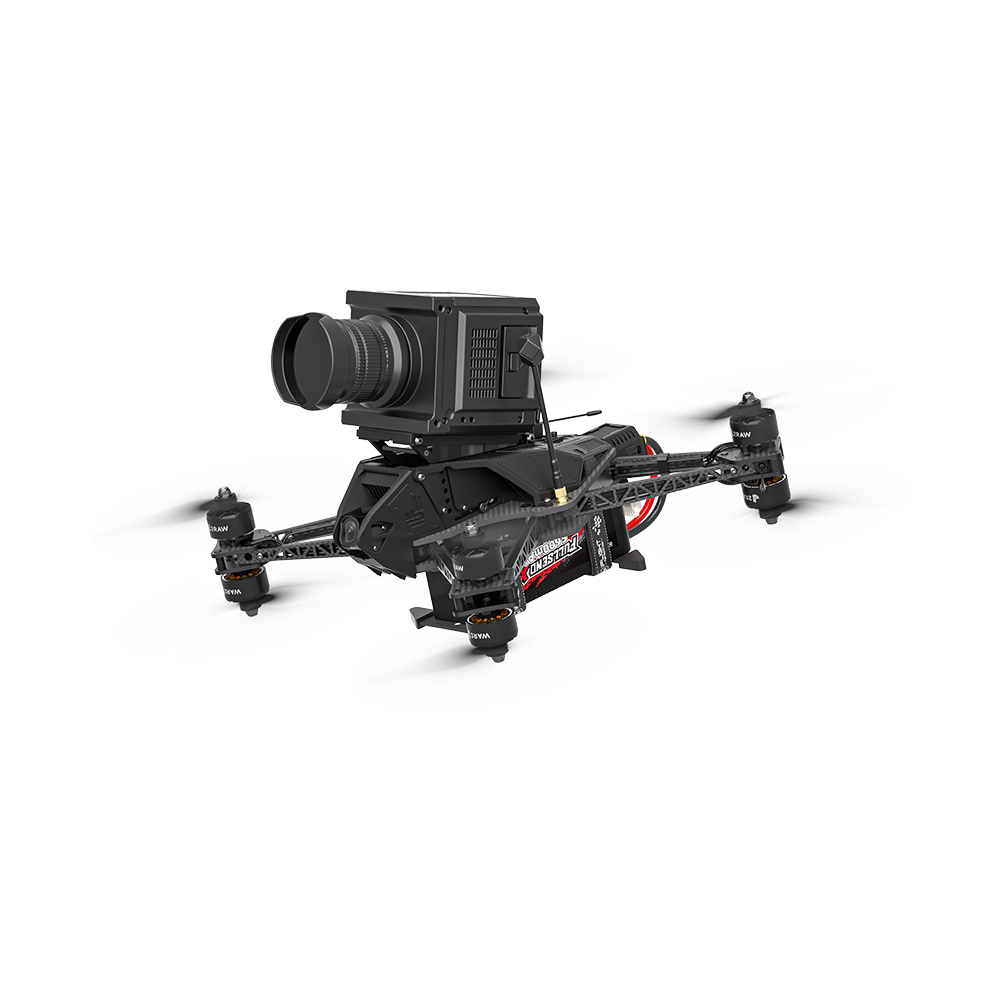

Innovative Camera Mount

Centurion's pioneering camera mount stands apart from others on the market with its adjustable angles ranging from 10 to 50 degrees. Fashioned from 7075 aero-grade aluminium, the mount is elevated to eliminate the propellers from the cinema camera's view. Critically, it is supported along both the horizontal and vertical axes to mitigate payload resonances. As the camera angle increases for heightened speeds, the mount provides increasing support.

AeroShell

The AeroShell not only imparts a distinctive appearance to Centurion but has also been meticulously engineered with the assistance of PHD students to regulate airflow around the body and within the drone. Air ingress occurs through the intakes to cool the ESC, while egress is facilitated through rear exhausts. As the drone's velocity escalates, the AeroShell acts as an air divider, deflecting airflow away from the flat top plate. Moreover, the shell serves as a barrier against dirt infiltration into the electronics.

Quick Release Battery System

Featuring a seamlessly integrated quick-release battery system, the Centurion optimizes efficiency in demanding filming environments. Unlike competing models, it employs battery straps and carbon plates, eliminating the need for individual battery tie-downs. This swift battery swap capability enables users to return to flight in mere seconds, enhancing productivity.

Product Name: Centurion X8 O4 6S HD

Geometry: Squashed-X

FC: Thunder H743 Flight Controller

ESC: Thunder 80A 8-IN-1 ESC

Video Transmission: DJI O4 Air Unit Pro

Frame: 384mm wheelbase

Motor: XING2 2812 1150KV motors

Prop: GEMFAN 8046 propellers

Weight: 1837±5g (Without Battery)

Takeoff Weight: Approx. 2695±5g (With 6S 5600mAh battery)

Dimensions (L×W×H): 272×272×96mm

Max Speed: 160km/h

Maximum Takeoff Altitude: 7000m

Max Hover Time: Approx. 6 mins with 6S Lipo 5600mAh battery (No Load)

Max Cruising Time: Approx. 5 mins with 6S Lipo 5600mAh battery (No Load)

Max Load: 3 KG

Max Wind Speed Resistance: Level 8

Operating Temperature Range: -10° to 40° C

Antennas: Dual Antennas

GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Product Name: DJI O4 Air Unit Pro

Image Sensor: 1/1.3-inch

Lens: FOV: 155°

ISO: 100-25600

Video Resolution: 1080p/100fps H.265

Video Format: MP4, Max Video Bitrate: 130Mbps

Color Mode: Normal Mode/D-Log M

Stabilization: RockSteady 3.0+ ; Stabilization function off (When RockSteady is enabled, the shooting angle only supports standard.)

Live View Quality: 1080P@100fps

Operating Frequency: 5.170-5.250 GHz  & 5.725-5.850 GHz

Transmitter Power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))

Max Video Transmission Range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC), 8 km (CE), 8 km (SRRC)

Communication Bandwidth: Max 60 MHz

Antenna: Dual antennas

Built-in Storage: 4GB

Supported SD cards: microSD (up to 512GB)

Operating Temperature: -10° to 40° C

Weight: Air Unit (camera module included): Approx. 32 g

Dimensions: Transmission Module: 33.5×33.5×13 mm (L×W×H)

1 x Centurion X8 O4 6S HD BNF

8 x GEMFAN 8046 CW propeller

8 x GEMFAN 8046 CCW propeller

2 x Albatross LHCP 5.8GHz SMA FPV Antenna

1 x XT90 Male to XT60 Female Adapter Wire

4 x iFlight Lipo Strap 20*300mm

2 x iFlight Lipo Strap 20*400mm

1 x XT90 Smart Smoke Stopper

All iFlight BNFs are tested before shipment to guarantee the highest quality.

If you still encounter a problem after receiving your shipment, please immediately contact our iFlight customer support at www.iflightrc.freshdesk.com.
