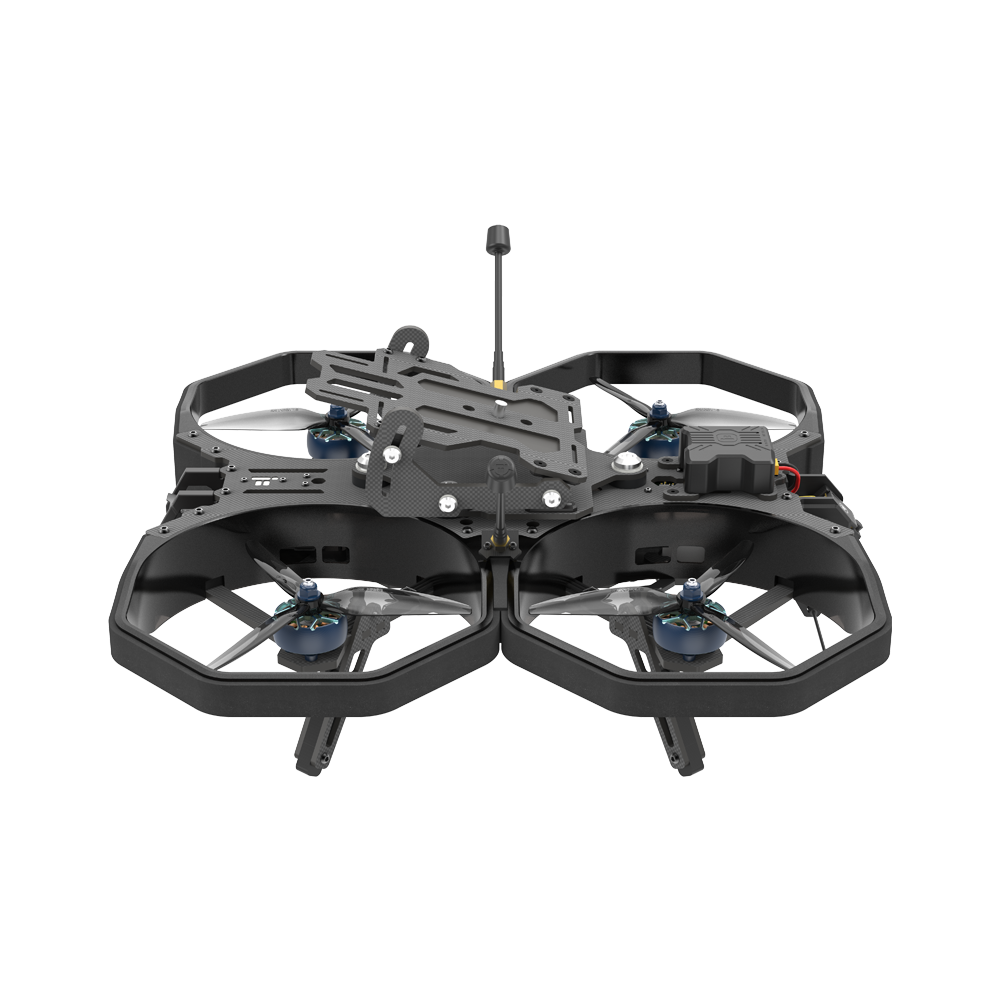

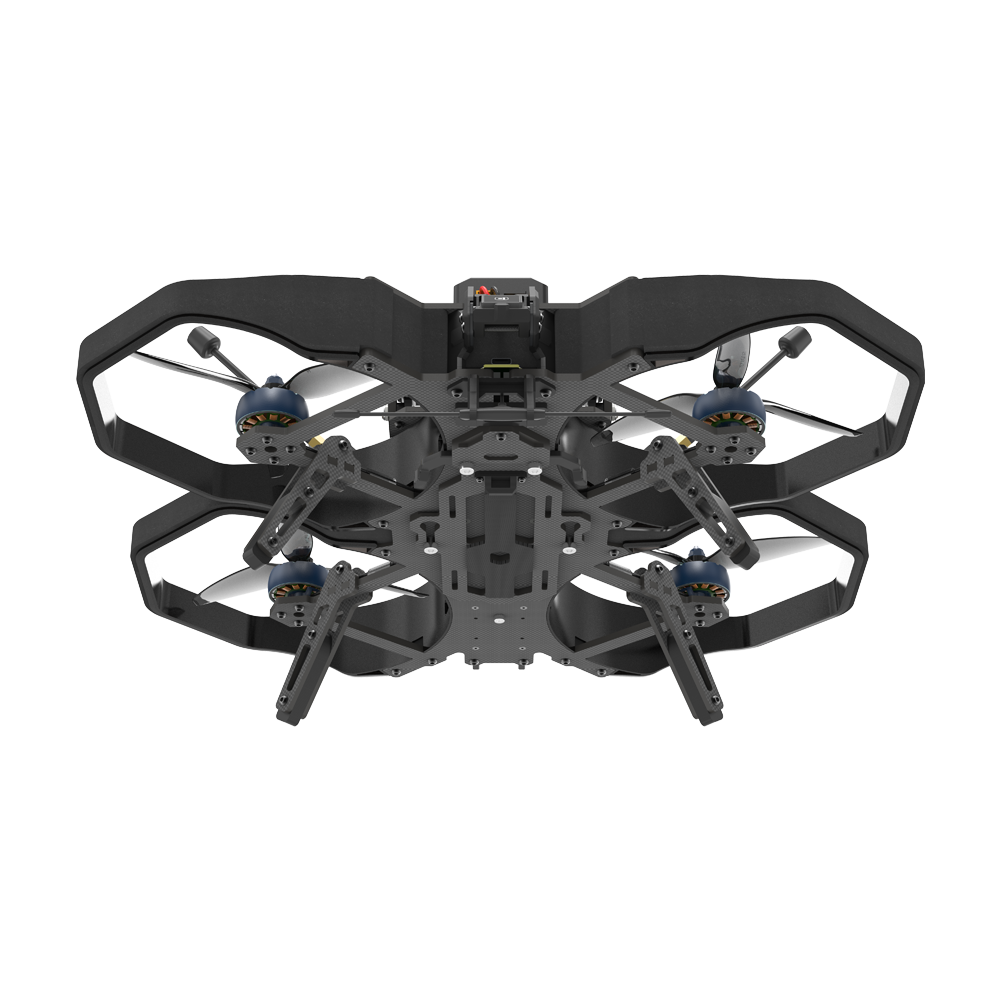

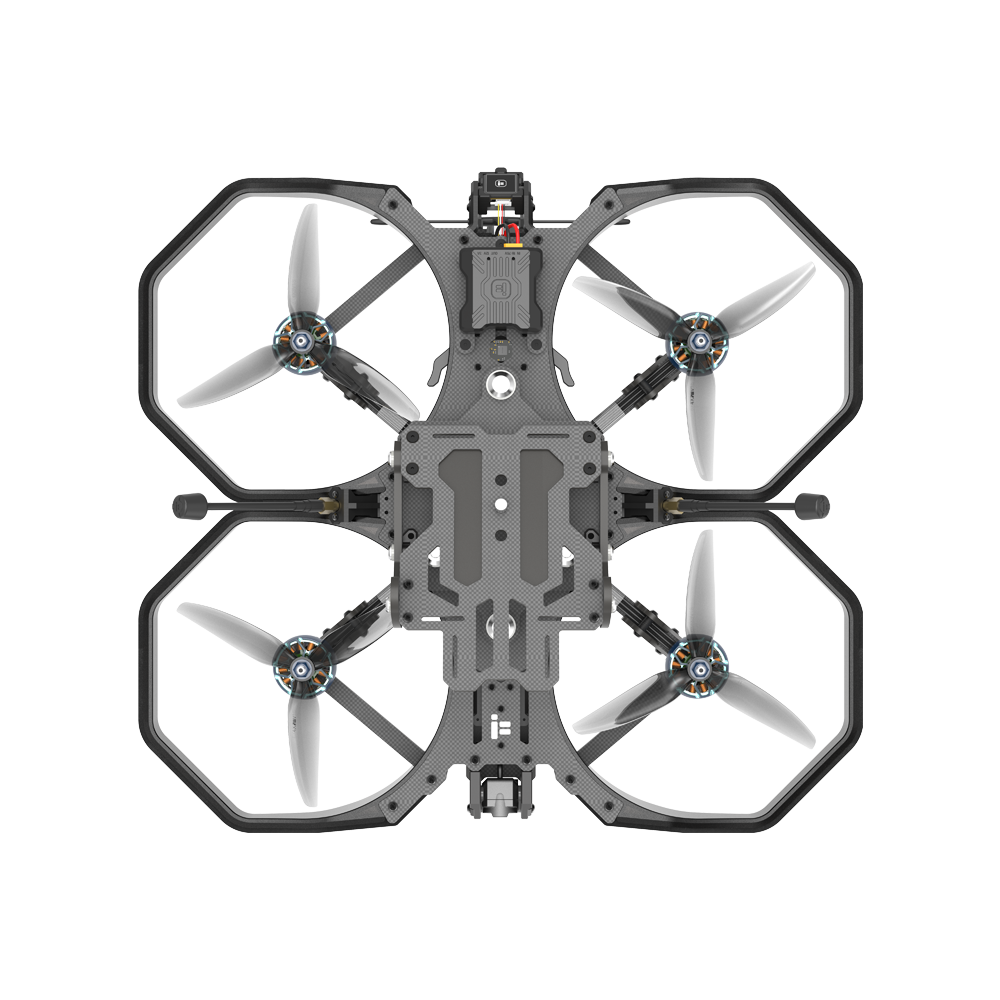

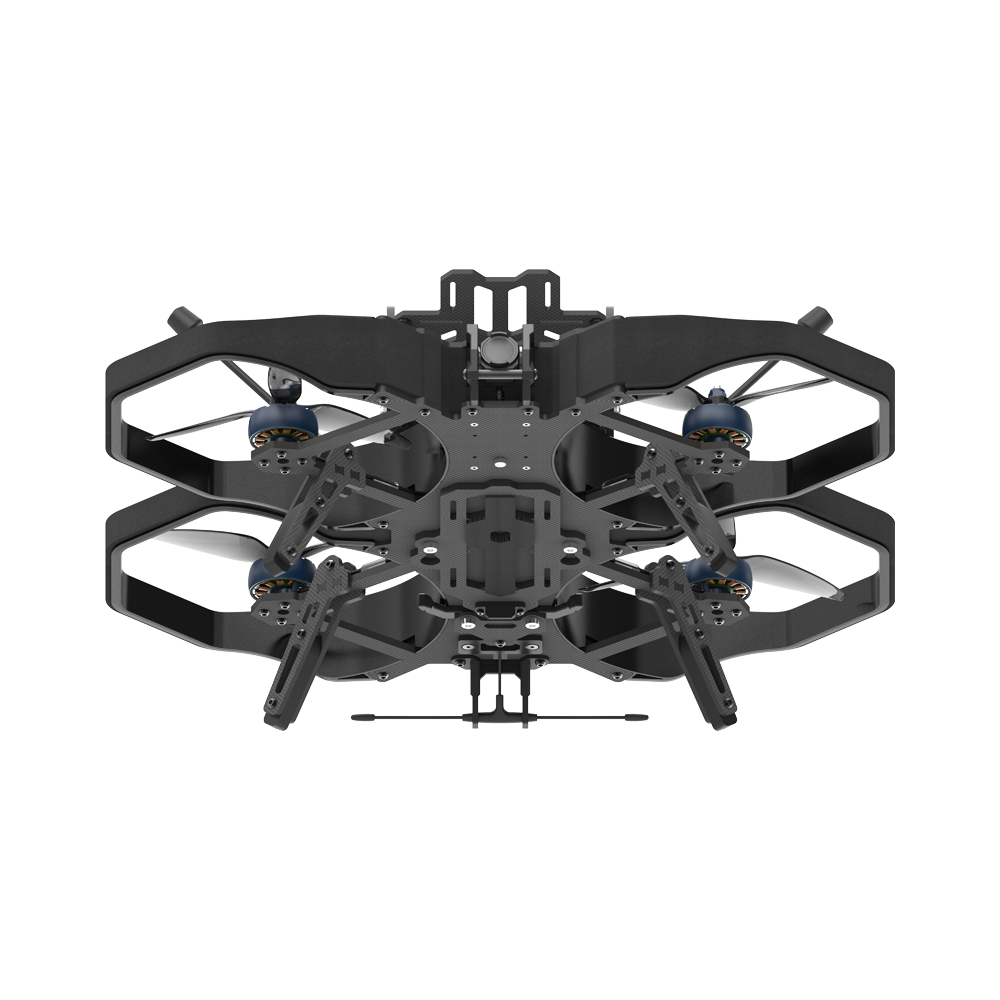

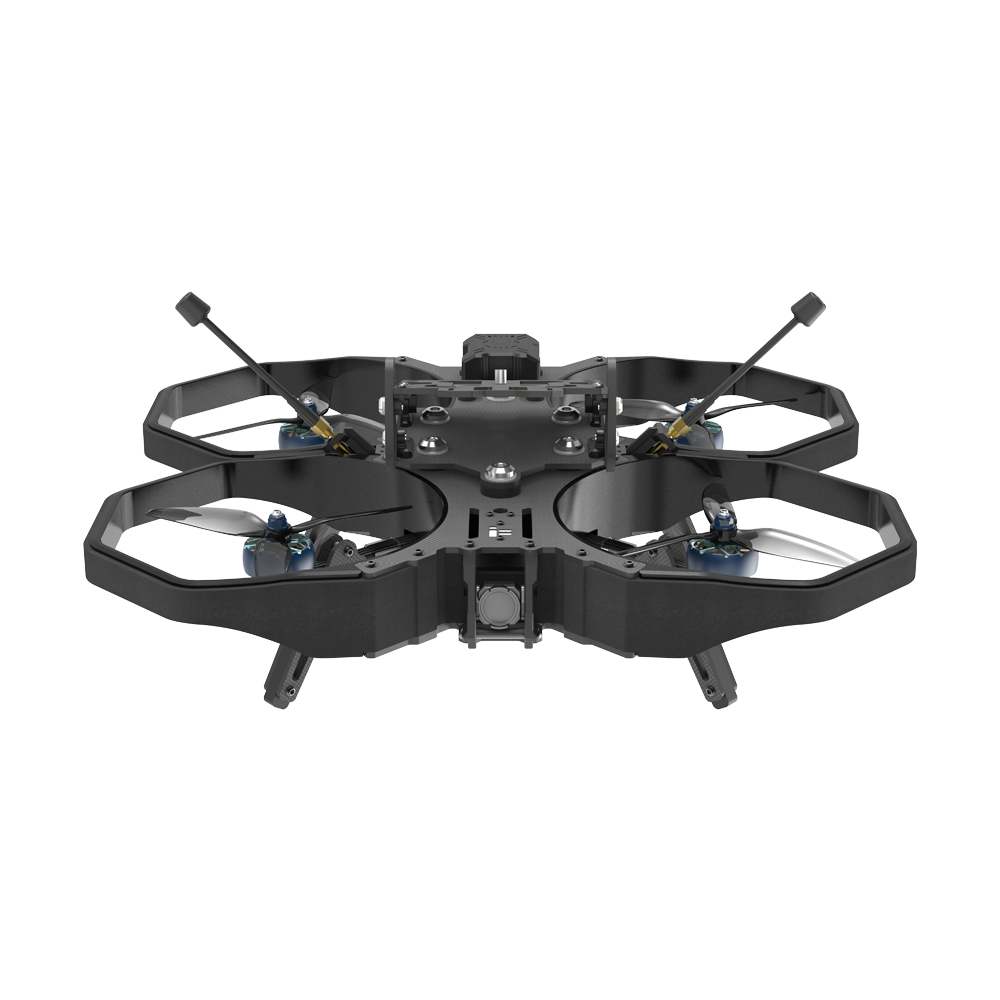

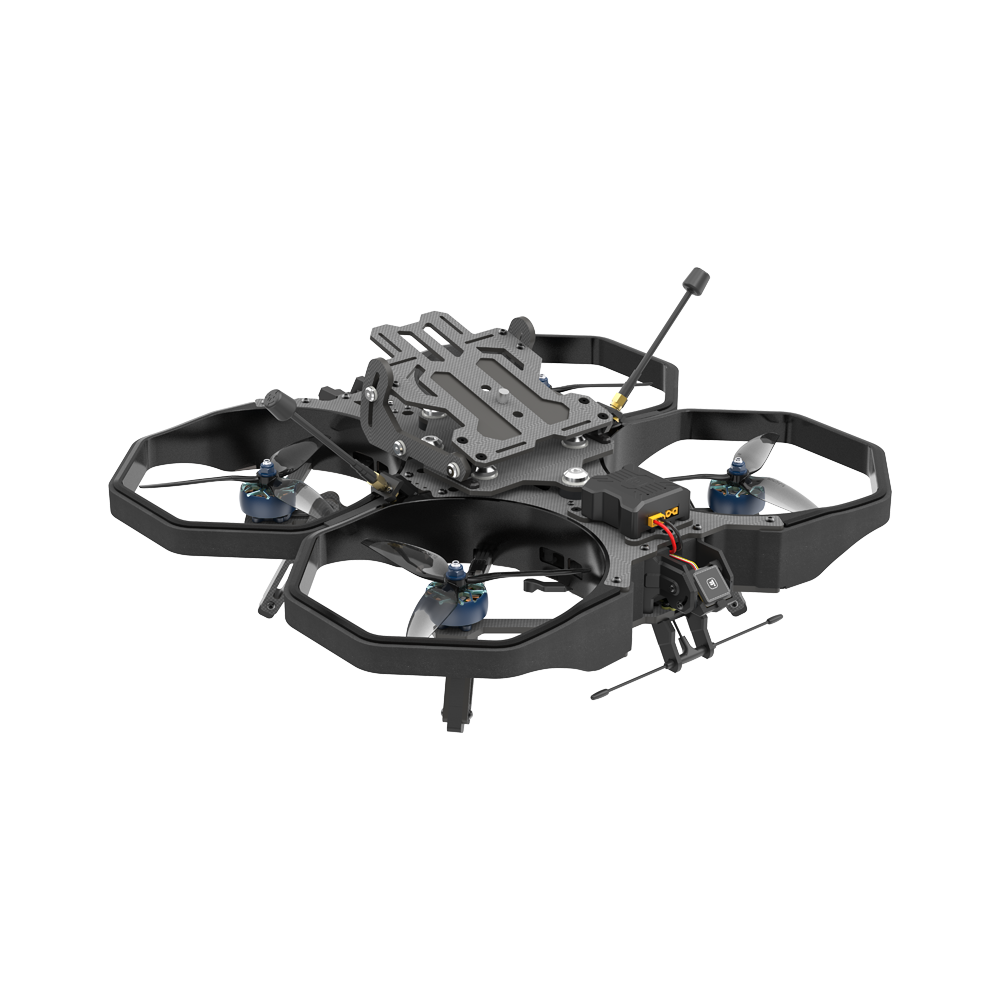

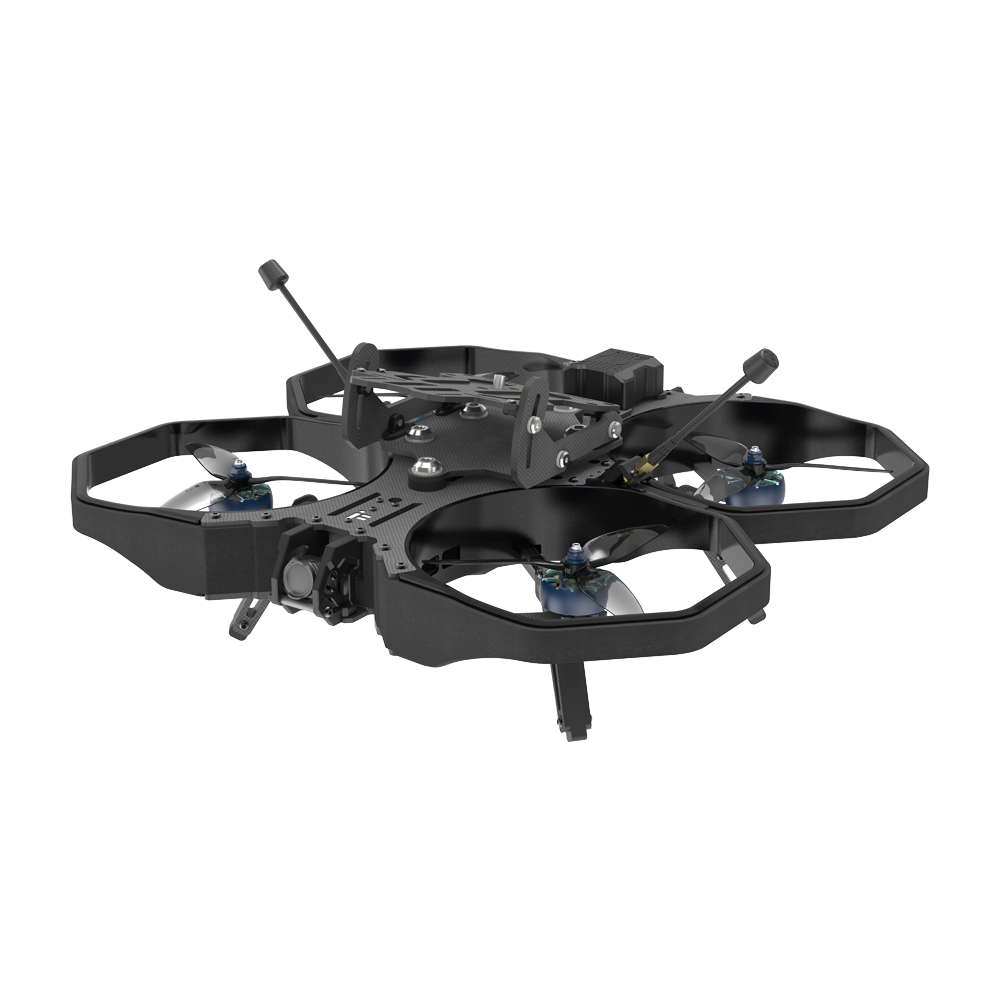

ProTek60 Pro 6S O3 HD

Protected Propellers for indoor and outdoor use, protecting whatever you might bump into from nasty cuts

DJI O3 HD Air Unit Low-Latency Digital Transmission with 4K Stabilized Video with 155° Ultra-Wide Angle

Universal camera mount and accessories for a wide range of cameras to install

Updated  BLITZ E80 4-IN-1 ESC for more power and reliability

Big size XING2 3110 power motors with extreme lift and flight performance

BLITZ M10 GPS module pre-installed (BF GPS rescue or INAV GPS RTH feature available)

Camera Power Supply Module // IFlight Camera Power 12V 3A BEC Module Short-circuit Protection Function

June 12, 2023: The standard battery is changed to Fullsend X 5600mAh 95C battery.

May 8, 2024: The Albatross antenna is available in two versions, and will be shipped randomly.

Product Name: ProTek60 Pro O3

FC: BLITZ F7 Pro Flight Controller

ESC: BLITZ E80 4-IN-1 Pro ESC

Video Transmission: DJI O3 Air Unit

Frame: 282mm wheelbase

Motor: XING2 3110 1600KV motors

Prop: Nazgul 6x4x3 propellers

Weight: 1466g

Max Speed: 110 km/h (Manual Mode)

Maximum Takeoff Altitude: 3200 m

Max Hover Time: Approx. 5.5 mins with 1.3KG load and 6S 4500mAh battery

Max Wind Speed Resistance: Level 6

Operating Temperature Range: -10° to 40° C (14° to 104° F)

Antennas: Dual Antennas

GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Product Name: DJI O3 Air Unit

Weight: Approx. 36.4 g（headband included）

Communication Bandwidth: Max 40 MHz

FOV (single screen): 155°

Communication Frequency: 2.400-2.4835 GHz (RX only)  /  5.725-5.850 GHz (RX and TX)

End-to-End Latency

With DJI FPV Goggles V2:

810p/120fps Video Transmission Quality: The latency is lower than 28 ms.

810p/60fps Video Transmission Quality: The latency is lower than 40 ms.

With DJI Goggles 2:

1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.

1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.

Max Video Transmission Bitrate: 50 Mbps

Max Video Transmission Range：10 km (FCC), 2 km (CE), 6 km (SRRC)

Operating Temperature Range: -10º to 40º C (14° to 104° F)

Power Input: 7.4-26.4 V

Audio Transmission: N/A

1 x ProTek60 Pro O3 BNF

1 x Nazgul 6x4x3 Propellers(Pairs)

2 x Albatross LHCP 5.8GHz SMA FPV Antenna

1 x XT90 Male to XT60 Female Adapter Wire

1 x Fullsend X 6S 5600mAh Battery

2 x Battery Strap

1 x XT90 Smart Smoke Stopper

1 x Prop Wrench

Don't worry about tuning, we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!

To restore lost tunes or updates, please check our linked article on "Firmware/Factory Dumps"

Angle-Mode (self balancing level mode) is enabled by default to make sure your first flight doesn't end in a mess!

Please check our linked article on "How to disable Angle-Mode, activate Acro-Mode"
