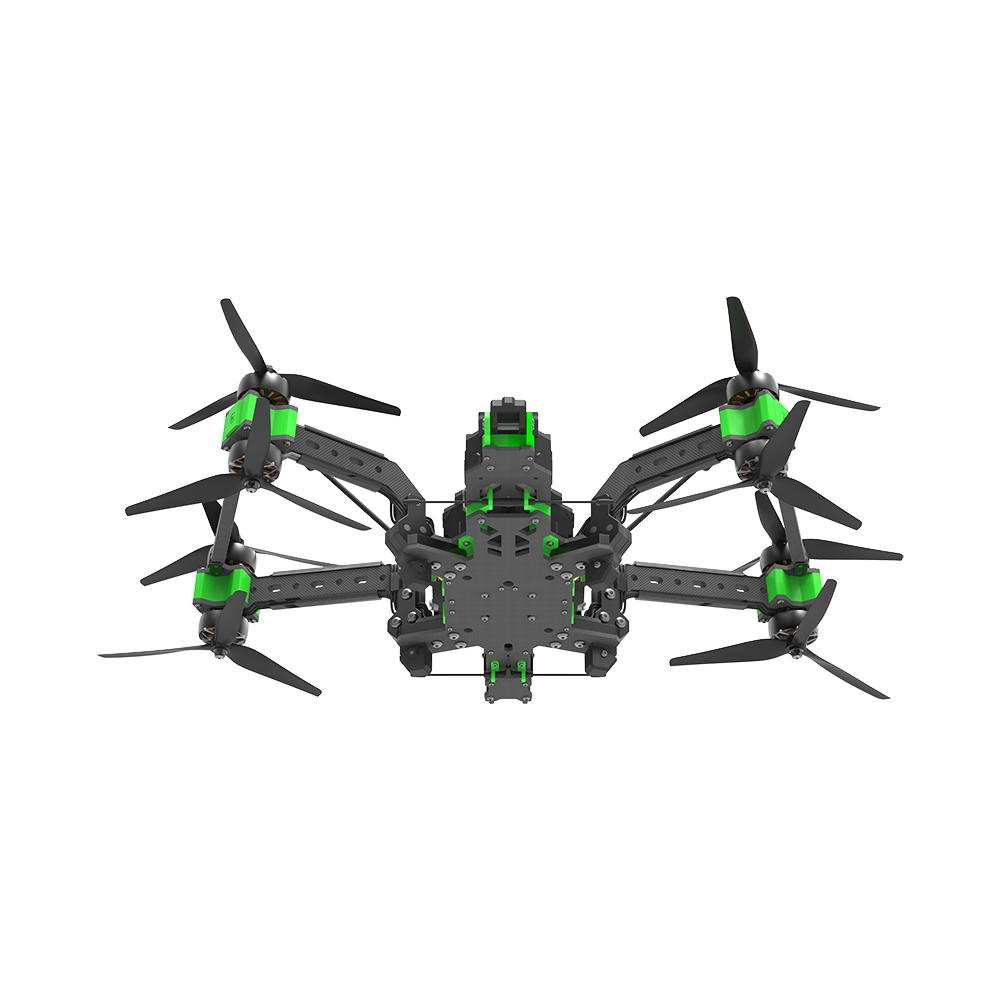

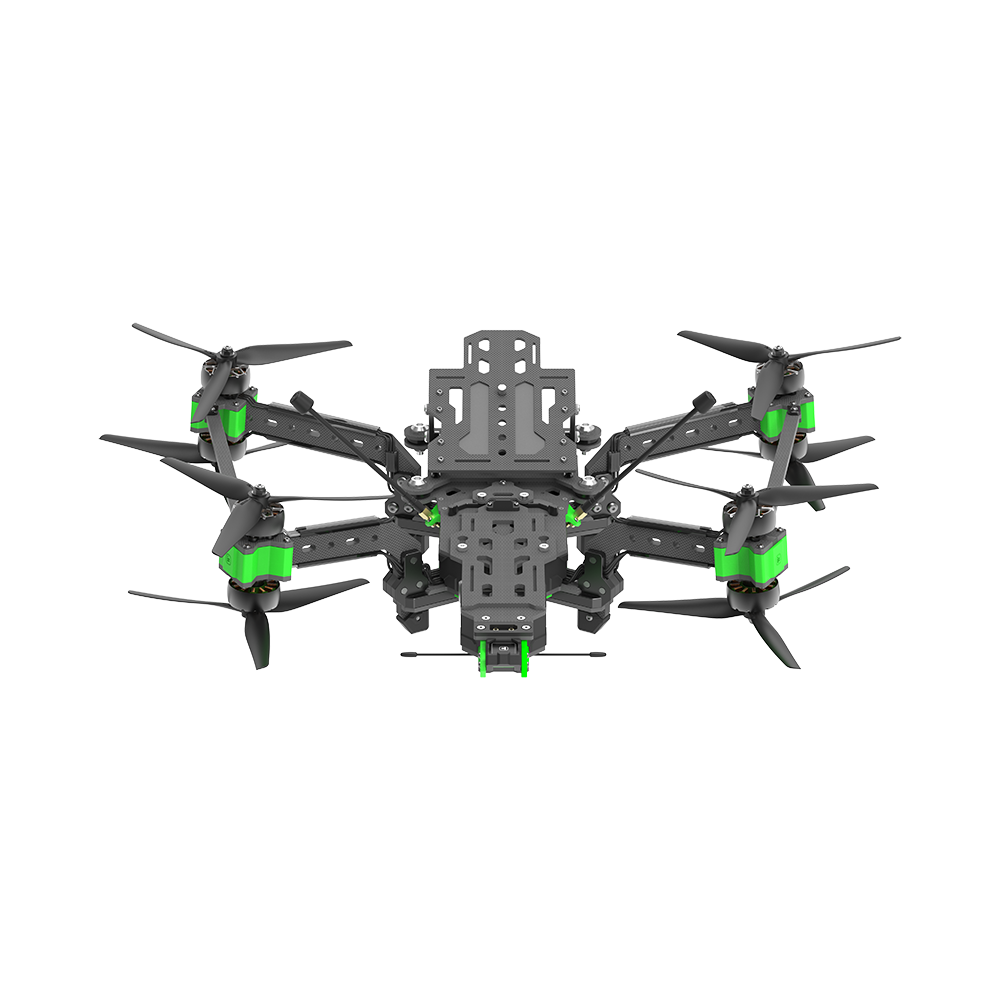

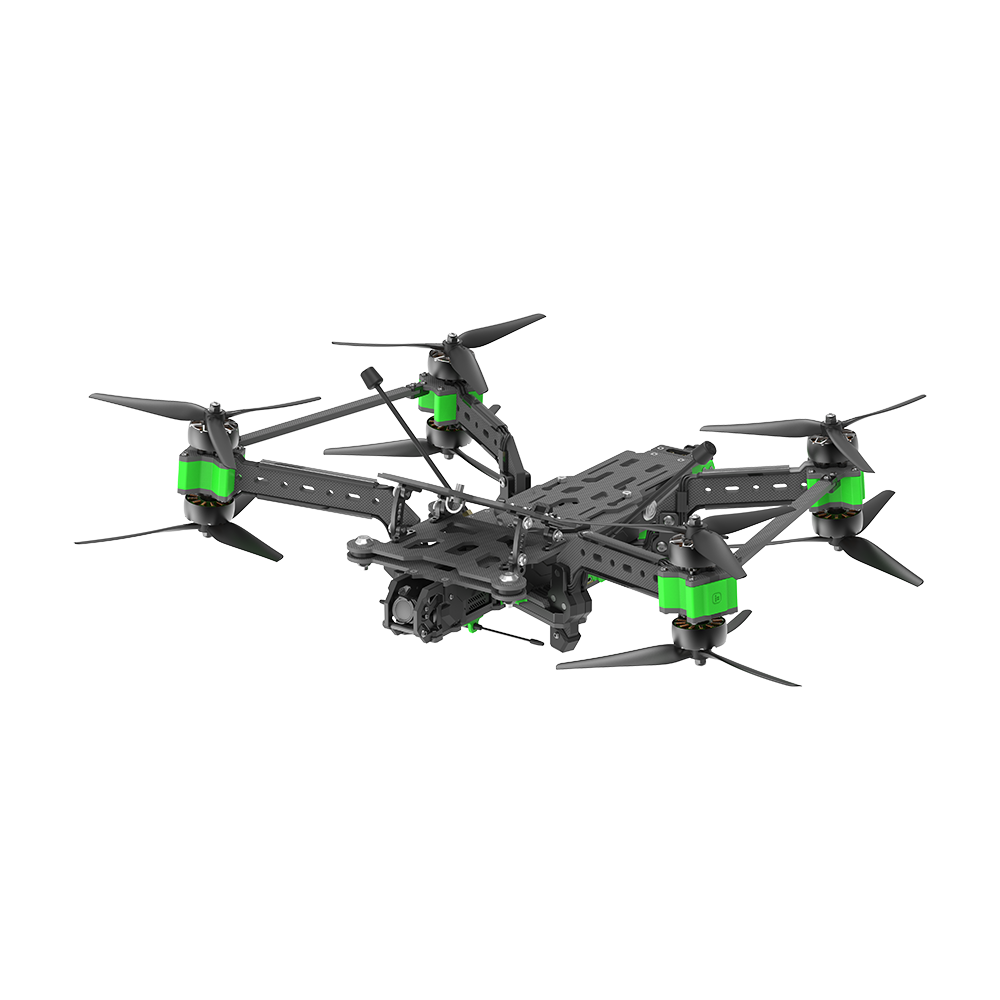

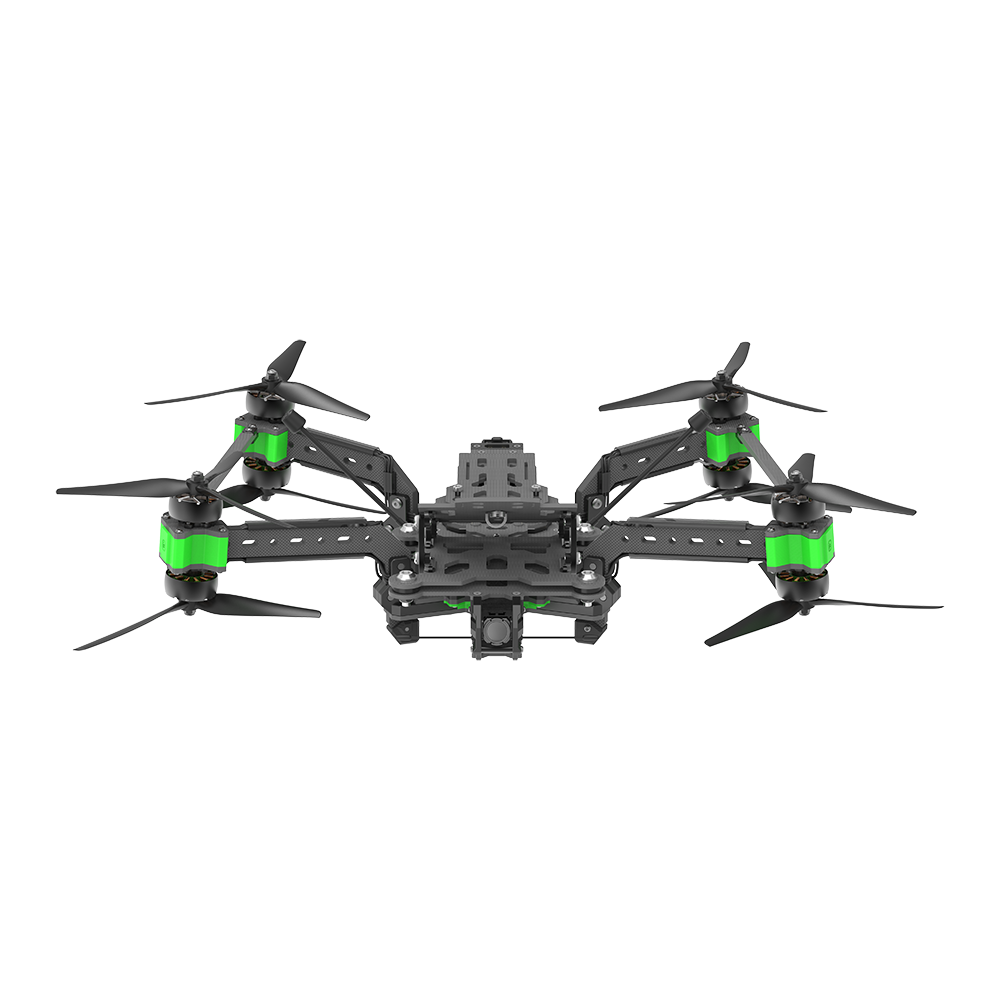

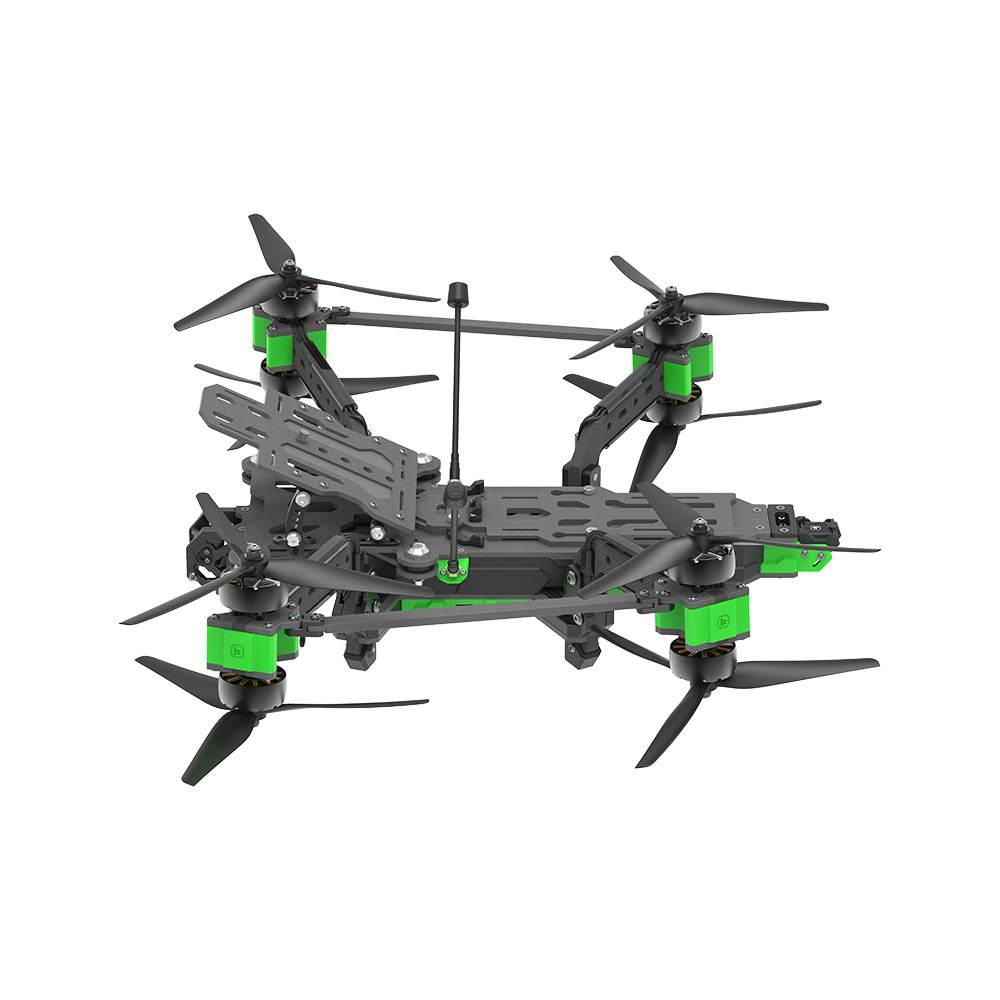

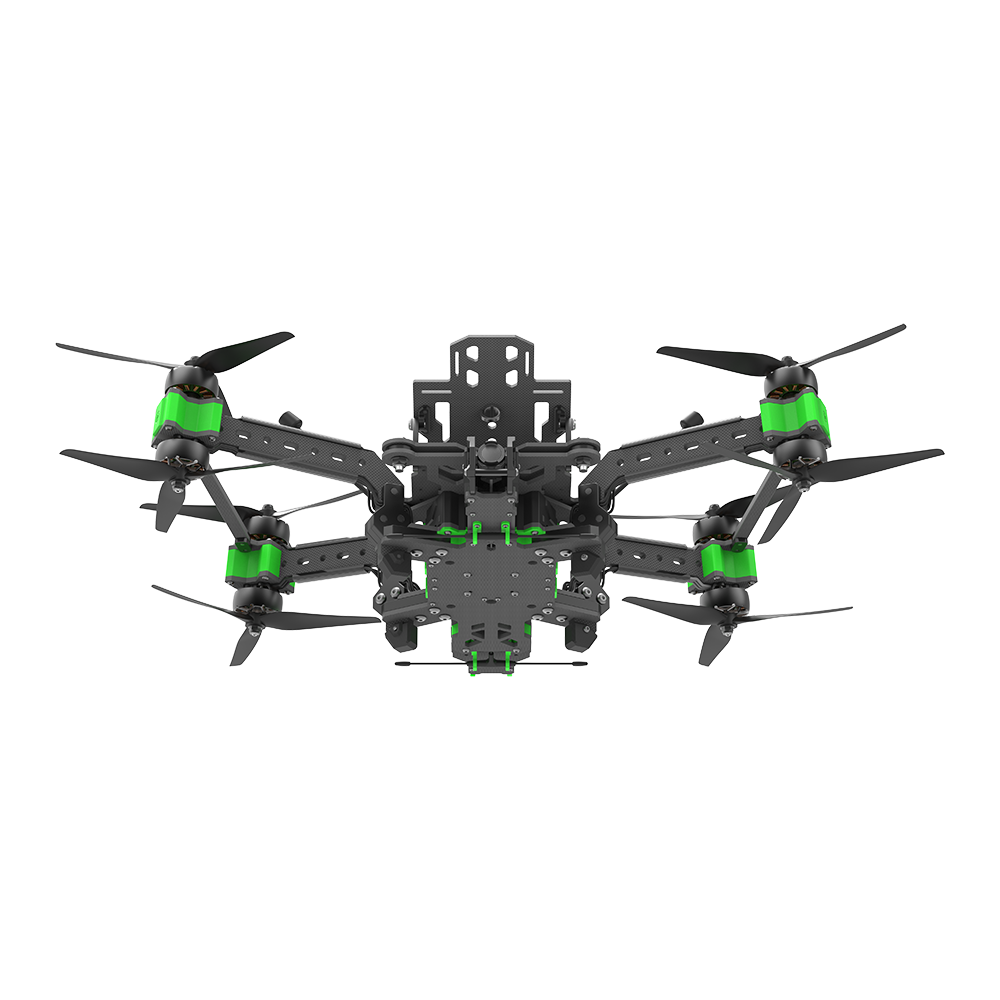

Taurus X8 Pro 8S HD

iFlight Shadow Series is designed for professional film photography and can be equipped with cameras such as Komodo/Zcam/Bmpcc. This series undoubtedly injects a new flying perspective into the film and television industry, and has innovative designs such as super-mount, power management and quick battery replacement. In addition, it also has a built-in flight redundancy and stability guarantee function, which can ensure smooth shooting and meet the needs of professional film and television shooting. The pre-installed GPS module makes the flight safer and more reliable
8354 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    Highlights

    Big size XING2 3314 // The power motors with extreme lift and flight performance

    8S power system // More power and speed

    8x single X-Class grade ESC motor drivers for more reliability

    Redundant iFlight ESC Commander PCB // Power distribution board with high capacitance, filtering and heat dissipation

    GPS module pre-installed (BF GPS rescue or INAV GPS RTH feature available)

    DJI O3 HD Air Unit Low-Latency Digital Transmission// 4K Stabilized Video with 155° Ultra-Wide Angle

    Secured Battery Plug with Anti-Spark Filter

    Universal camera mount and accessories for a wide range of cameras to install

    Changelog

    June 12, 2023: XING2 3110 900KV motor color changed to black.

    February 17, 2024: The motor was changed from XING2 3110 900KV motor to XING2 3314 900KV motor.

    May 8, 2024: The Albatross antenna is available in two versions, and will be shipped randomly.

    Specification

    Product Name: Taurus X8 Pro O3

    FC: BLITZ F7 Pro Flight Controller

    ESC: BLITZ E80 Single ESC (with CNC Alum Cover)

    Video Transmission: DJI O3 AIR Unit

    Diagonal Distance: 464±2 mm(wheelbase)

    Motor: XING2 3314 900KV motors

    Prop: HQ 8*4*3 propellers

    Weight: 2356±10g

    Takeoff Weight: Approx. 3494±20g (With 8S 5000mAh Battery)

    Dimensions (L×W×H): 428×249×74 mm

    Max Speed: 150 km/h

    Maximum Takeoff Altitude: 3200 m

    Max Hover Time: Approx. 5 mins with 8S 5000mAh battery and 1.5KG load.

    Max Wind Speed Resistance: Level 8

    Operating Temperature Range：-10° to 40° C (14° to 104° F)

    Antennas: Dual Antennas

    GNSS: GPS+SBAS+Galileo+QZSS+Glonass

    Video Transmission

    Product Name: DJI O3 Air Unit

    Weight: Approx. 36.4 g（headband included）

    Dimensions (L×W×H): L32.5 * W20.5 * H 14.5mm

    Refresh Rate: Up to 40 MHz

    FOV (single screen): 155°

    Communication Frequency: 2.400-2.4835 GHz；5.725-5.850 GHz

    With DJI FPV Goggles V2:

    810p/120fps Video Transmission Quality: The latency is lower than 28 ms.

    810p/60fps Video Transmission Quality: The latency is lower than 40 ms.

    With DJI Goggles 2:

    1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.

    1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.

    Max Video Transmission Bitrate: 50 Mbps

    Max Video Transmission Range：10 km (FCC), 2 km (CE), 6 km (SRRC)

    Operating Temperature Range: -10º to 40º C (14° to 104° F)

    Power Input: 7.4-26.4 V

    Packing List

    1 x Pre-built and Tested Taurus X8 Pro O3 BNF

    8 x HQ 8X4X3 CW propeller + 8 x HQ 8X4X3 CCW propeller (Color may vary)

    2 x Albatross LHCP 5.8GHz SMA FPV Antenna

    1 x XT90 Male to XT60 Female Adapter Wire

    2 x iFlight Lipo Strap 20*400mm (Black)

    2 x iFlight Lipo Strap 20*500mm (Black)

    1 x CNC Aluminum alloy cam mount

    1 x XT90 Smart Smoke Stopper

    1 x Prop Wrench

    Important

    All iFlight BNFs are tested before shipment to guarantee the highest quality.

    If you still encounter a problem after receiving your shipment, please immediately contact our iFlight customer support at www.iflightrc.freshdesk.com.
