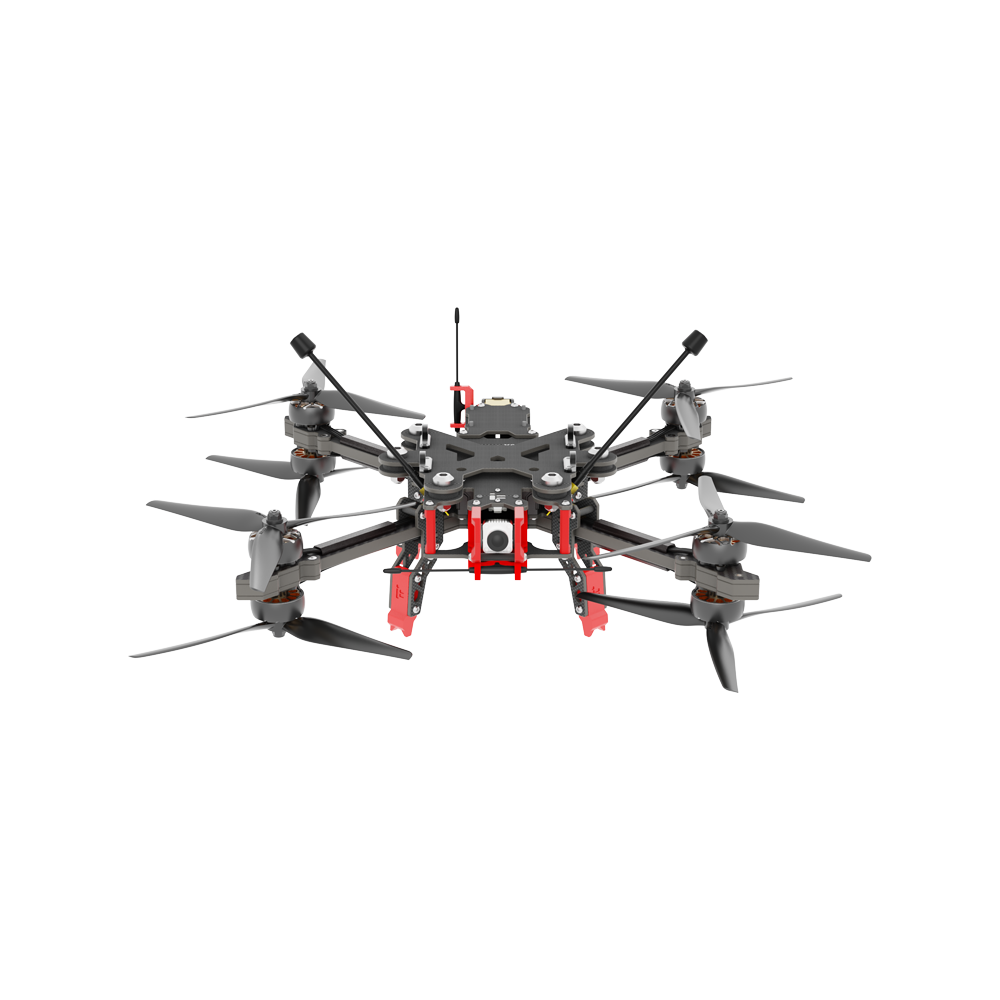

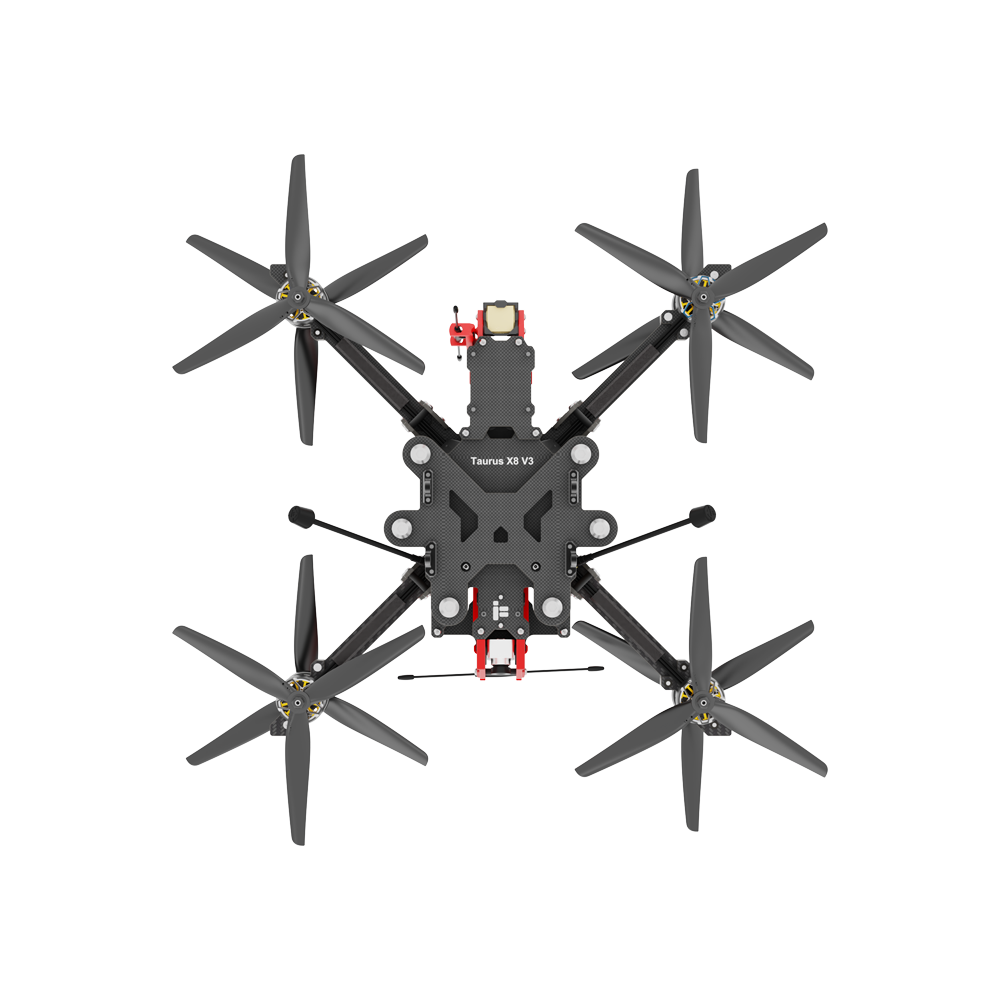

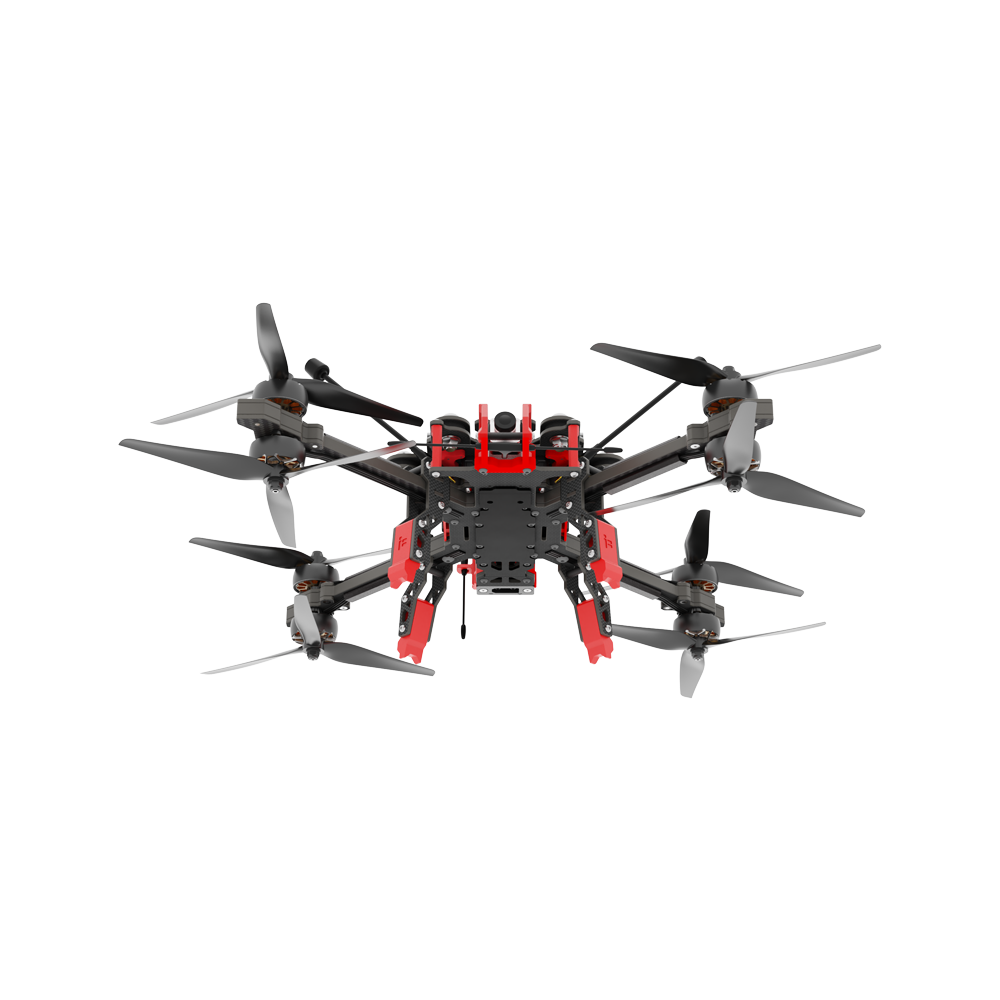

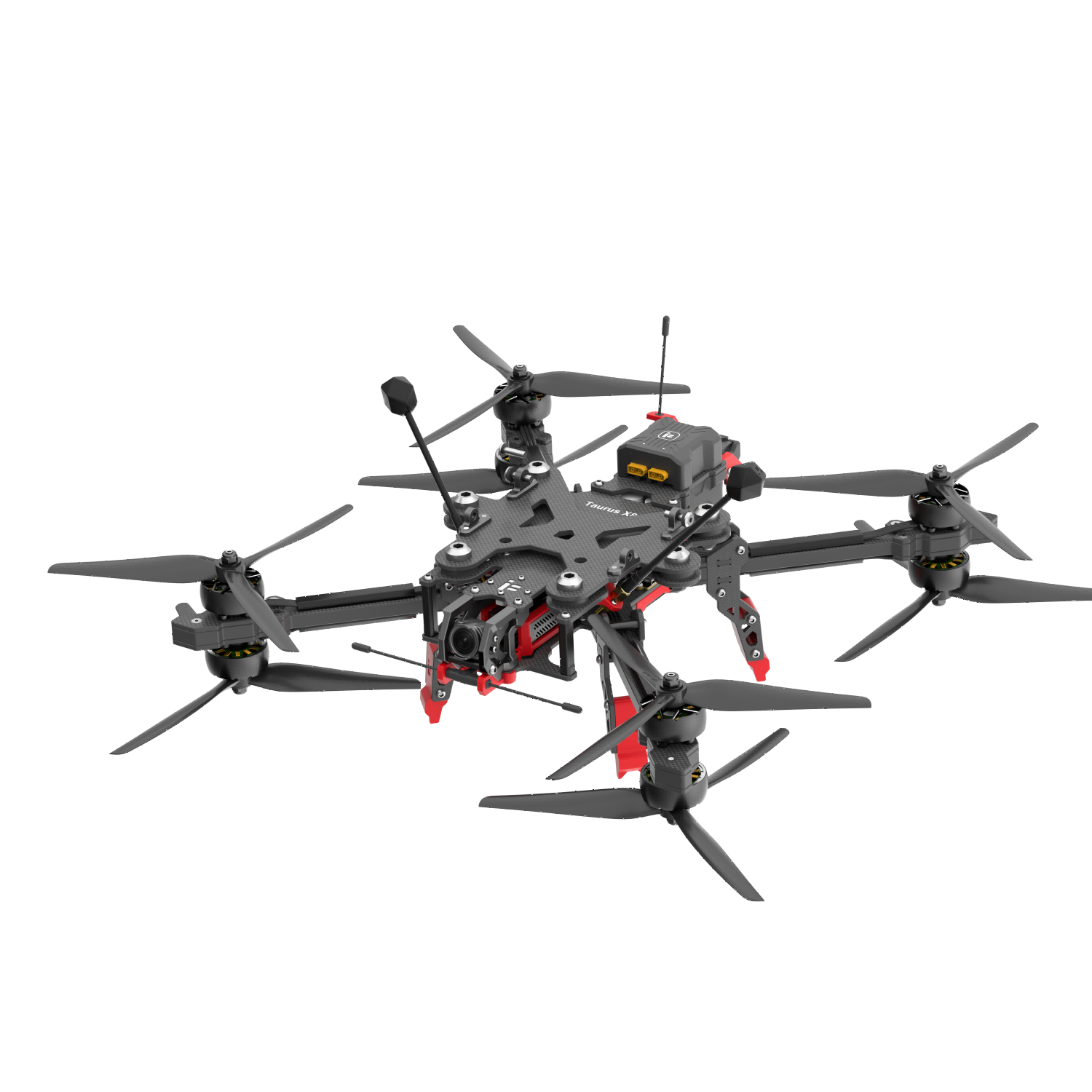

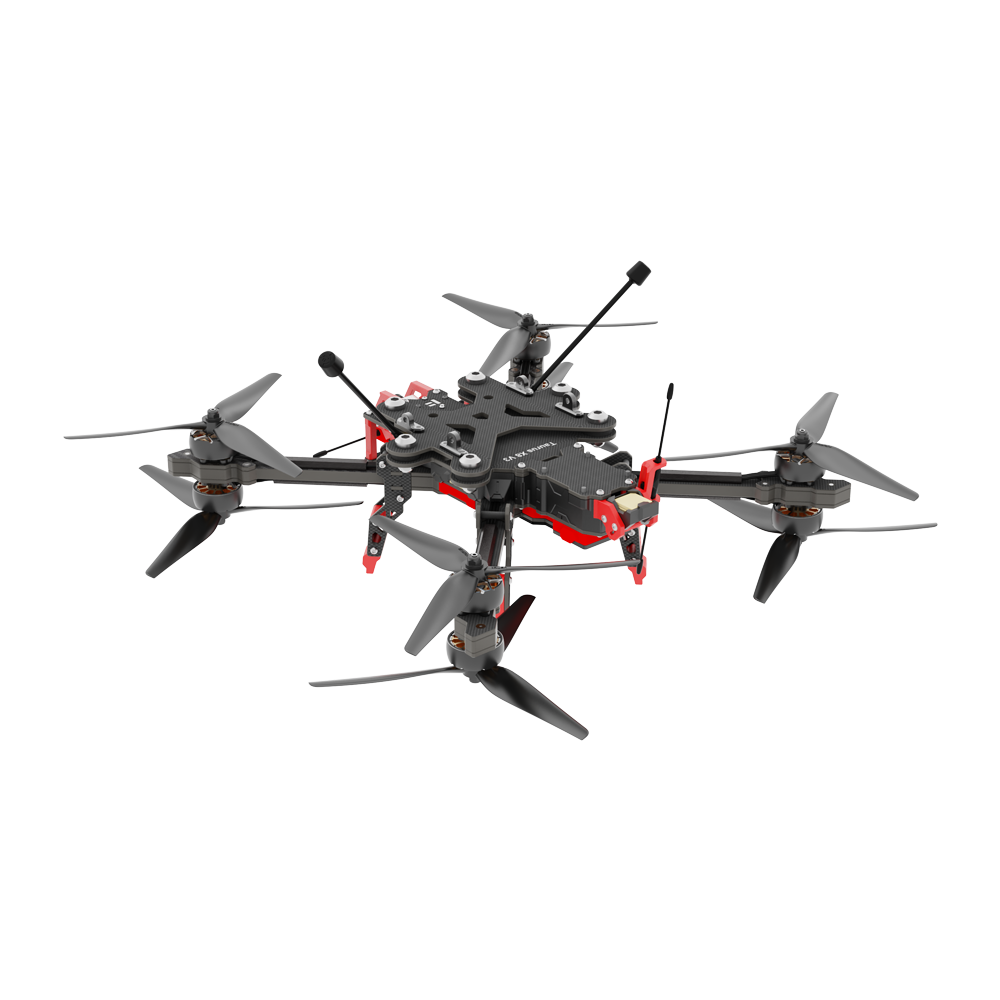

Taurus X8 V3 6S O4

Big size XING2 3110 // The power motors with extreme lift and flight performance

Redundant ESC and motor configuration

GPS module pre-installed (BF GPS rescue or INAV GPS RTH feature available)

DJI O4 HD Air Unit Low-Latency Digital Transmission// 4K Stabilized Video with 155° Ultra-Wide Angle

Universal camera mount and accessories for a wide range of cameras to install

June 12, 2023: The standard battery is changed to Fullsend 5600mAh 95C battery.

May 8, 2024: The Albatross antenna is available in two versions, and will be shipped randomly.

April 9, 2025: Video Transmission updated from DJI O3 Air Unit to DJI O4 Air Unit Pro.

Product Name: Taurus X8 V3 O4

FC: BLITZ F7 Pro Flight Controller

ESC: BLITZ E80 2-8S 80A 4-IN-1 ESC(without CNC Alum Cover)

Video Transmission: DJI O4 AIR Unit Pro

Frame: 400mm wheelbase

Motor: XING2 3110 1250KV  motors

Prop: HQ 8043 propellers

Weight: 1634±10g

Takeoff Weight: Approx. 2492±20g (With 6S 5600mAh Battery)

Dimensions (L×W×H): 283×283×112 mm

Diagonal Distance: 400 mm

Max Speed: 150 km/h (Manual Mode)

Maximum Takeoff Altitude: 3200 m

Max Hover Time: Approx. 5.5 mins with 2KG load and 6S 5600mAh battery

Max Flight Distance: 5 km

Max Wind Speed Resistance: Level 8

Operating Temperature Range: -10° to 40° C (14° to 104° F)

Antennas: Dual Antennas

GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Product Name: DJI O4 Air Unit Pro

Image Sensor: 1/1.3-inch

Lens: FOV: 155°

ISO: 100-25600

Video Resolution: 1080p/100fps H.265

Video Format: MP4, Max Video Bitrate: 130Mbps

Color Mode: Normal Mode/D-Log M

Stabilization: RockSteady 3.0+ ; Stabilization function off (When RockSteady is enabled, the shooting angle only supports standard.)

Live View Quality: 1080P@100fps

Operating Frequency: 5.170-5.250 GHz  & 5.725-5.850 GHz

Transmitter Power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))

Max Video Transmission Range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC), 8 km (CE), 8 km (SRRC)

Communication Bandwidth: Max 60 MHz

Antenna: Dual antennas

Built-in Storage: 4GB

Supported SD cards: microSD (up to 512GB)

Operating Temperature: -10° to 40° C

Weight: Air Unit (camera module included): Approx. 32 g

Dimensions: Transmission Module: 33.5×33.5×13 mm (L×W×H)

1 x Taurus X8 V3 BNF

1 x Fullsend 5600mAh Battery

8 x HQ 8X4X3 CW propeller + 8 x HQ 8X4X3 CCW propeller (Color may vary)

2 x Albatross LHCP 5.8GHz SMA FPV Antenna

1 x XT90 Male to XT60 Female Adapter Wire

2 x iFlight Lipo Strap 20*400mm (Black)

2 x iFlight Lipo Strap 20*500mm (Black)

1 x CNC Aluminum alloy cam mount

1 x XT90 Smart Smoke Stopper

1 x Prop Wrench

All iFlight BNFs are tested before shipment to guarantee the highest quality.

If you still encounter a problem after receiving your shipment, please immediately contact our iFlight customer support at www.iflightrc.freshdesk.com.

Tips: If you choose an aluminum case, we will pack the Taurus X8 Pro in the aluminum case for delivery.
